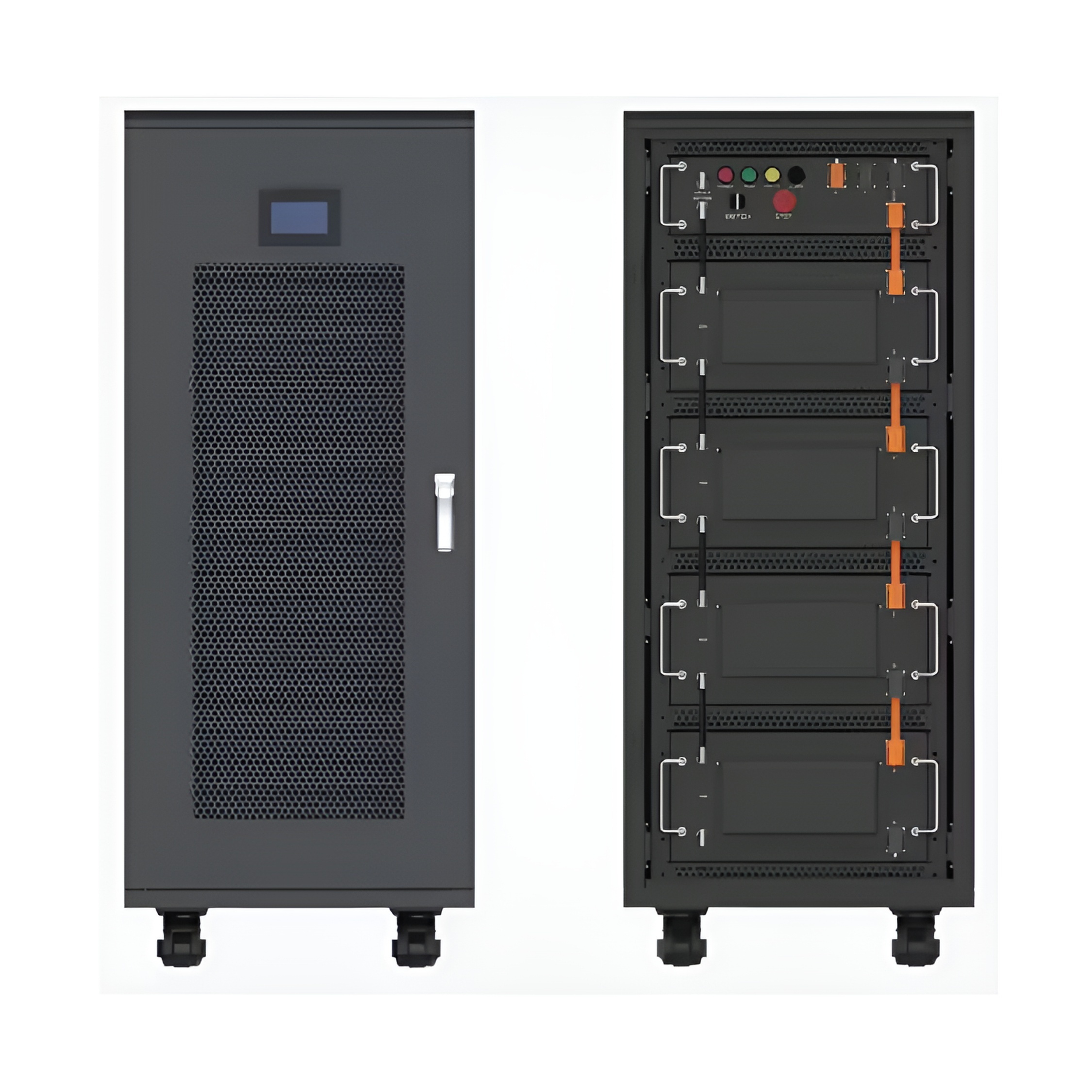

Lithium Iron Phosphate (LiFePO₄) Rack-Mount Battery System
For Mission-Critical Data Centers and Cloud Infrastructure
Core Advantages
✅ Enhanced Safety
No thermal runaway risk (Self-extinguishing Design)
Stable chemical structure (4,000+ cycles @ 80% DoD)
✅ Environmental Compliance
Lead-free & mercury-free construction
100% recyclable materials (Cradle-to-Cradle certified)
✅ Cost Efficiency
30% Lower lifecycle cost vs. Lead-Acid batteries
Technical Specifications
Parameter | Specification |
---|---|
Energy Density | 150Wh/kg ( industry-leading LFP cell) |
Cycle Life | 10,000 cycles @ 25°C (50% DoD) |
Discharge Depth | 100% DOD safe (No memory effect) |
Round-Trip Efficiency | 98% @ 0.5C rate |
Operating Temperature | -30°C to 65°C (-22°F to 149°F) |
Innovative Design Features
Modular Architecture
Hot-swappable 10kWh sub-modules (5min replacement time)
Scalable from 150kWh to 1.2MWh using 3D interlocking system
Intelligent Thermal Management
Phase-change cooling (PCM) + forced air cooling
<5°C temperature rise during full load operation
Advanced Battery Management
Real-time SOH/SOC monitoring with ±0.5% accuracy
Support for SNMPv3 and RESTful API integration
Safety & Compliance
Safety Standard | Test Results |
---|---|
UL1973 (Battery Safety) | Passes 1.2m drop test, overcharge protection |
IEC62479 (Uninterrupted Power) | 100% load step response<10ms |
NFPA 850 (Fire Safety) | FMVSS No. 305 compliance |
Typical Application Scenarios
Data Center UPS
15-minute backup at full load (2MW system example)
Seamless transition with ATS switch (<8ms)
Energy Storage System
Peak shaving (Reduces 30% energy costs)
Grid stabilization with black start capability
Edge Computing
Low maintenance requirements (No need for acid handling)
Vibration resistance (MIL-STD-810G compliant)
Why Choose LFP?
Fire Prevention: Passes UL94 V-0 flammability rating
Long-Term ROI: 7-year payback period for energy storage projects
Sustainability: 98% of components can be recycled
Need Custom Solutions?
Provide the following details for tailored proposals:
Rack standard (EIA-310-D / Open19 / 42U)
Cooling requirements (Airflow or liquid cooling)
Power density targets (kW per rack unit)
We offer factory testing reports (UN38.3, ISTA 3A) and third-party validation services upon request.
Customized/OEM/ODM Service
HomSolar Supports Lifepo4 battery pack customization/OEM/ODM service, welcome to contact us and tell us your needs.
HomSolar: Your One-stop LiFePO4 Battery Pack & ESS Solution Manufacturer
Our line of LiFePO4 (LFP) batteries offer a solution to demanding applications that require a lighter weight, longer life, and higher capacity battery. Features include advanced battery management systems (BMS), Bluetooth® communication and active intelligent monitoring.
Customised Lithium Iron Phosphate Battery Casing
ABS plastic housing, aluminium housing, stainless steel housing and iron housing are available, and can also be designed and customised according to your needs.
HomSolar Smart BMS
Intelligent Battery Management System for HomSolar Energy Storage System. Bluetooth, temperature sensor, LCD display, CAN interface, UART interface also available.
Terminals & Plugs Can Be Customized
A wide range of terminals and plugs can be customised to suit the application needs of your battery products.
Well-designed Solutions for Energy Storage Systems
We will design the perfect energy storage system solution according to your needs, so that you can easily solve the specific industry applications of battery products.
About Our Battery Cells
Our energy storage system products use brand new grade A LiFePO4 cells with a battery lifespan of more than 4,000 charge/discharge cycles.
Applications in Different Industries
We supply customized & OEM battery pack, assemble cells with wiring, fuse and plastic cover, all the cell wires connected to PCB plug or built BMS.
Applications: E-bike, Electric Scooter, Golf Carts, RV, Electric Wheelchair, Electric Tools, Robot Cleaner, Robot Sweeper, Solar Energy Storage System, Emergency Light, Solar Power Light, Medical Equipment, UPS Backup Power Supply.
We can provide you with customized services. We have the ability to provide a vertical supply chain, from single cells to pack/module and to a complete power solution with BMS, etc.
